Zirconia/titania sol have been developed using Nissan Chemical's proprietary manufacturing technology.
These are highly concentrated and stable metal oxide sols that can be used in a binder for optical applications,
titanium precision casting and various catalysts.

NanoUse^® ZR　▼: A water-dispersed zirconia sol with high
concentration and chlorine-free properties.
This is used as a binder for titanium precision
casting and various catalysts.

NanoUse^® OZ／OT　▼: Zirconia/titania sols dispersed in water/organic
solvents have been developed for optical applications.
These have high dispersibility and a high refractive
index and can be used as a refractive index modifiers and reflective materials.

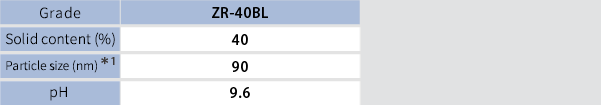

NanoUse^® ZR product list

ZR product list

*1 Measured by DLS method
The figures above are general properties, not guaranteed properties.

Functionality and applications of NanoUse^® ZR

Binding

Binding properties can be obtained by mixing with ceramic particles and calcination.

Preferred grades: ZR-40BL

Applications
Investment casting, Refractories

Heat resistance

Good heat resistance and fire endurance are obtained.

Preferred grades: ZR-40BL

Applications
Investment casting, Refractories

Characteristic of NanoUse^® ZR

TEM image

: ZR-40BL

Electric charge

: Isoelectric point of ZR-40BL is around pH 6-7.

Heat resistance

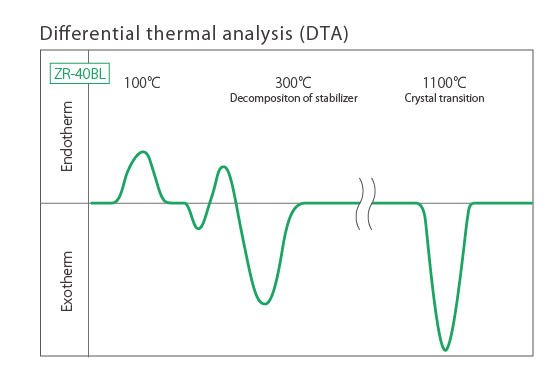

: The graph shows the result of DTA measurement which indicates thermal changes of dried gel of ZR-40BL.
ZR-40BL can be used as a binder under high temperature environment (e.g. 1000℃).

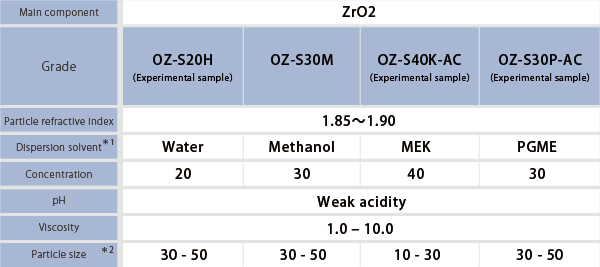

NanoUse® OZ/OT line-up and physical properties

ZrO2

*1:Dispersible in PGME and MIBK 　*2:Dispersed particle size by dynamic light scattering

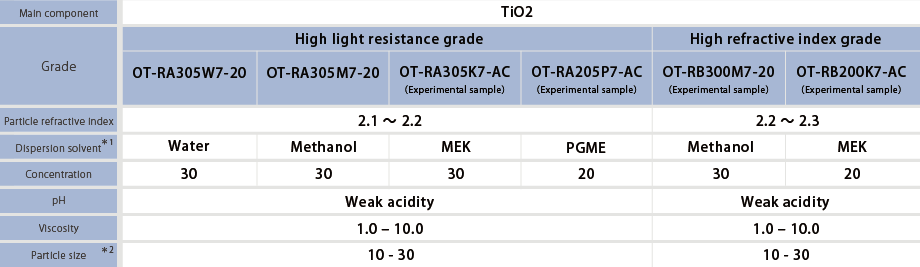

$NanoUse®OT NanoUse® OT is a titania sol dispersed in water/organic solvents with a higher refractive index than zirconia sols.The line-up includes a high refractive index grade and a highly light-resistant grade with inhibition to photocatalytic activity.$

ZiO2

*1:Dispersible in PGME and MIBK 　*2:Dispersed particle size by dynamic light scattering

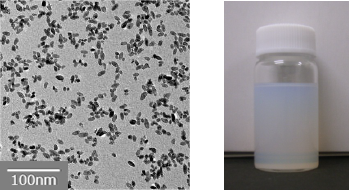

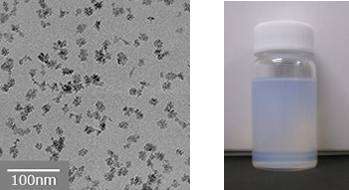

TEM photographs and external view

: NanoUse^®OZ

: NanoUse^®OT

Basic properties of NanoUse^®OT

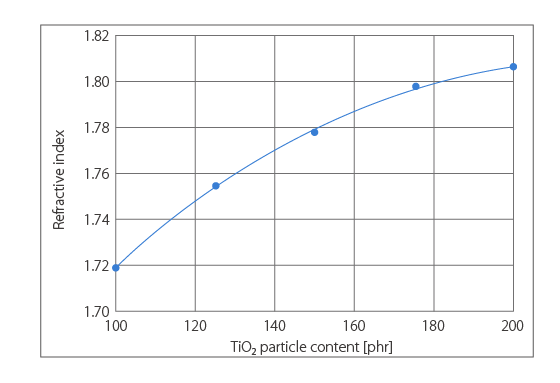

Particle addition amount and film refractive index

$Particle addition amount and film refractive index$

Filler：OT-RB300M7-20
Binder：DPHA（hexafunctional acrylic resin）
Substrate：glass
Film thickness：1μm

The refractive index can be adjusted to any desired refractive index by changing the amount of particles added.

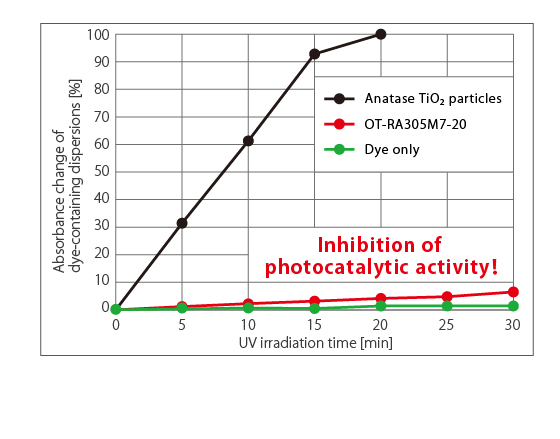

Light-resistance

After adding an organic dye (sunset yellow) to a light-resistant TiO₂particle dispersion, the dye-containing dispersion was irradiated with UV light and the absorbance of the dye-containing dispersion was measured.

Dye only
（without TiO₂
particles）
OT-RA305
M7-20
Anatase
TiO₂
particles

During TiO₂particle UV irradiation, the dye decomposes due to the photoactivity of TiO₂. OT-RA305M7-20, in which photoactivity is suppressed, significantly reduces the decomposition of the dye.

Coating film properties

Filler：OT-RA305M7-20
Binder：DPHA（hexafunctional acrylic resin）
TiO₂ content：100phr
Substrate：sapphire glass
Film thickness：1μm

Refractive index	1.68
Haze	0%

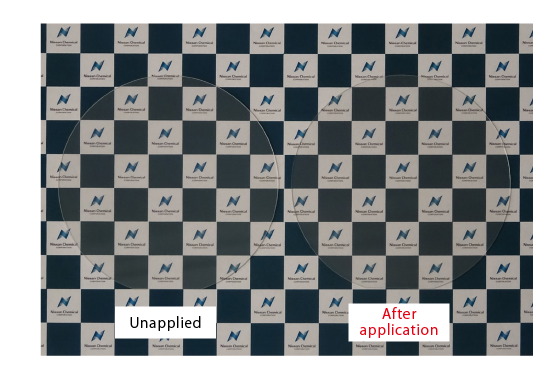

Low Haze, high transparency coatings can be formed.
